    Fabricante: Siemens

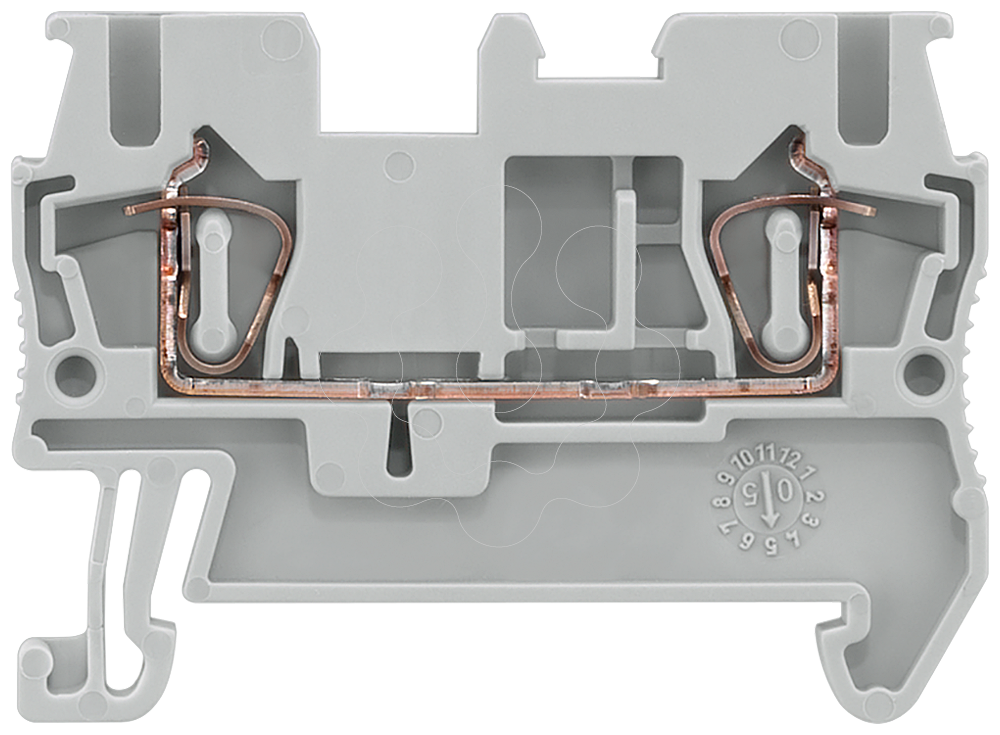

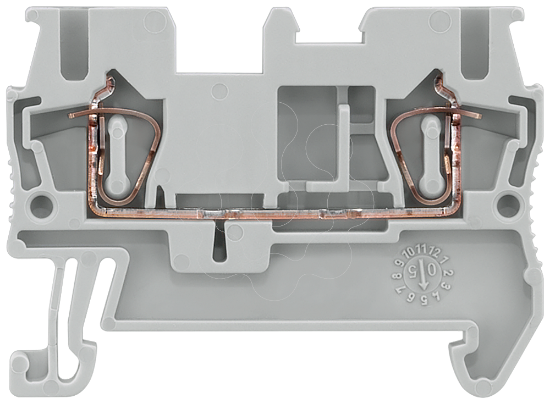

    F-T TE 2.5 MM2, GRAY

    1,21 € Iva incluído
    Through-type terminals with spring-loaded connection, Cross section: 0.08-2.5 mm2, Width: 5.2mm, Color: gray Terminal block connection technology for various industrial applications and modern buildin
    SKU: 10276374
    Número de peça do fabricante: 8WH20000AF00
    GTIN: 4001869346717
    Through-type terminals with spring-loaded connection, Cross section: 0.08-2.5 mm2, Width: 5.2mm, Color: gray Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens. www.siemens.com/lowvoltage. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
    Especificações dos produtos
    Método de montagemPerfil DIN 35 mm
    CorCinzento
    Material do corpo isolanteOutro
    Versão à prova de explosão 'Ex e'Não
    Tipo de ligação elétrica 2Conexão por terminal de mola
    Tipo de ligação elétrica 1Conexão por terminal de mola
    Placa de fecho necessáriaNão
    Número de níveis1
    Tensão nominal800V
    Número de fixações por nível2
    Níveis ligados internamenteNão
    Classe de inflamabilidade do material de selagem de acordo com UL 94V0
    Posição de ligaçãoAcima
    Seção da ligação de cabo rígido0 - 4mm²
    Seção do condutor de fio fino de ligação com ponteira0 - 3mm²
    Largura/tamanho da grelha5.2mm
    Seção da ligação de cabo flexível0 - 4mm²
    Seção de condutor de fio fino de ligação sem ponteira0 - 3mm²
    Temperatura de operação-25 - 55°C
    Corrente nominal31.0A
